IC 74XX-Serie - 7400

Datasheet SN7400 Texas Instruments
http://www.ti.com/lit/ds/symlink/sn74ls00.pdf



Click to enlarge7400 Siren
Two NAND gates are used for the oscillator, and two as the control. If the two-tone speed needs to be altered, the 220 µ capacitors can be changed Oarger for slower operation).
http://www.next.gr/inside-circuits/7400-siren-l8833.html

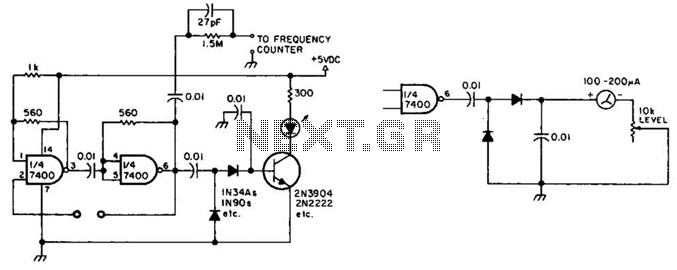

Click to enlargeCrystal Activity Tester Circuit
This circuit will check a crystal for activity. Two sections of a 7400 act as an oscillator and its output is rectified and drives an npn transistor that switches an LED (Fig. A).
http://www.next.gr/inside-circuits/crystal-activity-tester-circuit-l11176.html

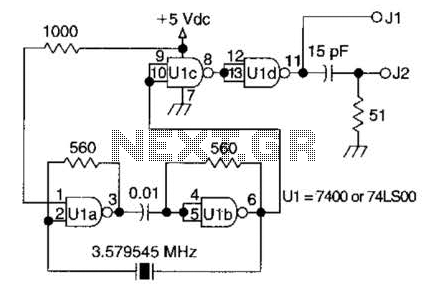

Click to enlargeWide-Range Crystal Oscillator Circuit
A circuit using one 7400 TTL10 can use crystals of the fundamental type, from 1 to about 13 MHz. Output is rich in harmonics.
http://www.next.gr/inside-circuits/wide-range-crystal-oscillator-circuit-l11179.html
